Package Torello.Browser.JsonAST

Class SERIALIZED_AST

java.lang.Object

Torello.Browser.JsonAST.SERIALIZED_AST

All Implemented Interfaces:

java.io.Serializable

public class SERIALIZED_AST
extends java.lang.Object
implements java.io.Serializable

This class is the primary User-Interaction API class. This class will load the "already parsed" a.k.a. the "already generated" AST Object Instances from the Java-HTML '.jar' File into memory from disk. This class uses the standard JDK Object serialization and de-serialization techniques.

If you wish to "play around" and experiment with actual nodes of the classes in the JsonAST Package, then simply invoke this classes SERIALIZED_AST.deserializeFromJAR() method, and you will have a genuine AST with which you may experiment.

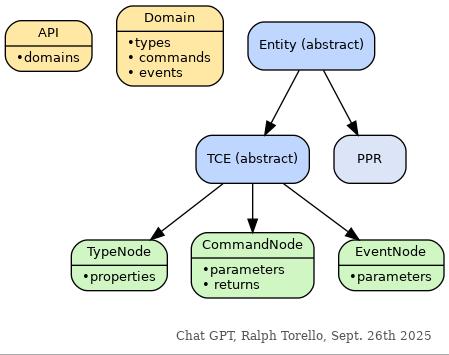

Object-Class Inheritance Tree:
This image portrays the Java Class Inheritance of these objects / classes.

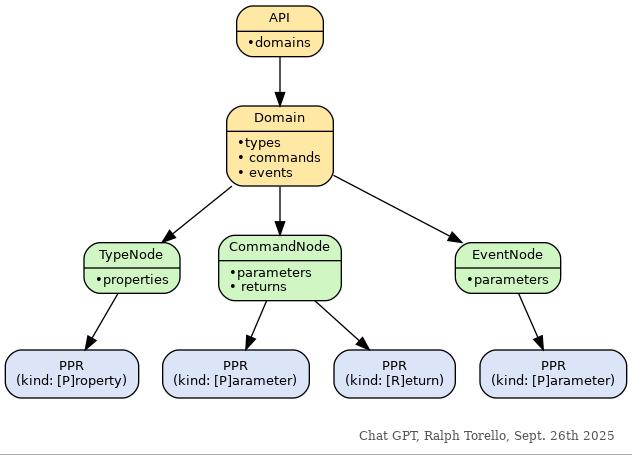

Runtime Instance Container Tree:
This image portrays these objects / classes as containers that hold instances / references of each other.



Loading the AST's from Disk:
The following example code is merely provided here to show what is easy (and hopefully intuitive) when using the two AST's which have been serialized to disk / the '.jar' File.

Again, this package is used internally, and likely has somewhat less value as a public API. If you are interesting in iterating or inspecting (programatically - rather than just looking at the Java Doc for these methods) these domains (packages), classes and methods - then this example portrays the one line invocation for loading the AST's from disk.

Example:

import Torello.Browser.JsonAST.*;

// This class simply loads the seialized AST's from disk (from the '.jar' File).  Afterwards, it
// searches the "JavaScript AST" (There are 2 AST's - 1 per API).
//
// Once it finds the "RunTime" Domain (inside Google Chrome, a "Domain" is similar to a Java
// "Package"), it then finds the "evaulate" method, and prints all 15 of its separate parameters to
// the termainal.
//
// The method "RunTime.evaluate(...)" accepts many parameters, and is the standard mechanism for
// requesting that the browser execute user provided Java-Script, using the browser's Java-Script
// engine.

public class ast
{
    public static void main(String[] args)
    {
        System.out.println("Hello from class ast!");
        SERIALIZED_AST sa = SERIALIZED_AST.deserializeFromJAR();

        for (Domain d : sa.jsAPI)
            if (d.name.equals("RunTime"))
                for (CommandNode cn : d.commands)
                    if (cn.name.equals("evaluate"))
                    {
                        System.out.println(
                            "d.toString():\n" +     d.toString() + '\n' +
                            "cn.toString():\n" +    cn.toString()
                        );

                        for (PPR param : cn.parameters)
                            System.out.println(param.toString());

                        System.exit(0);
                    }
    }
}

See Also:

Serialized Form

Hi-Lited Source-Code:

• View Here: Torello/Browser/JsonAST/SERIALIZED_AST.java
• Open New Browser-Tab: Torello/Browser/JsonAST/SERIALIZED_AST.java

File Size: 5,729 Bytes Line Count: 133 '\n' Characters Found

Field Summary

Serializable ID
Modifier and Type	Field	Description
protected static long	serialVersionUID
Data File Name within the Java-HTML '.jar' File
Modifier and Type	Field	Description
static String	FILE_NAME_JAR	The Java-HTML '.jar' File contains a data-file by this name.
CDP Specification Files, Parsed into Abstract Syntax Trees
Modifier and Type	Field	Description
API	browserAPI	This is an instance field, and after the AST's have been loaded from the '.jar' file, this field will contain the Abstract Syntax Tree for Google's "Browser API" suite of methods, types and events.
API	jsAPI	This is an instance field, and after the AST's have been loaded from the '.jar' file, this field will contain the Abstract Syntax Tree for Google's "JavaScript API" suite of methods, types and events.
Miscellaneous Facts about the Two AST's, required by the Java Code Generator
Modifier and Type	Field	Description
InfoData	browserDat	This is some rather boring "facts" about the classes and methods in the AST ("the tree").
InfoData	jsDat	This is some rather boring "facts" about the classes and methods in the AST ("the tree").

Method Summary

Read the Serialized Data File from the Java-HTML '.jar' File, and Return the Data
Modifier and Type	Method	Description
static SERIALIZED_AST	deserializeFromJAR()	Reads both API's (the "Browser API" and the "JavaScript API") from disk, and into Java Memory.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

serialVersionUID

🡇 ⇈ ⮫ 🗕 🗗 🗖

protected static final long serialVersionUID

This fulfils the SerialVersion UID requirement for all classes that implement Java's interface java.io.Serializable. Using the Serializable Implementation offered by java is very easy, and can make saving program state when debugging a lot easier. It can also be used in place of more complicated systems like "hibernate" to store data as well.

See Also:

Constant Field Values

Code:

Exact Field Declaration Expression:

 protected static final long serialVersionUID = 1;

FILE_NAME_JAR

🡅 🡇 ⇈ ⮫ 🗕 🗗 🗖

public static final java.lang.String FILE_NAME_JAR

The Java-HTML '.jar' File contains a data-file by this name. Using standard Java Serialization, both Google's "JavaScript API" and Google's "Browser API" have had their Abstract Syntax Tree's serialized (saved) to disk.

If you don't remember how to load a serialized data-file into memory, there is a simple method in this class which does just that. (See deserializeFromJAR())

See Also:

Constant Field Values

Code:

Exact Field Declaration Expression:

 public static final String FILE_NAME_JAR = "SerializedAST.dat";

browserAPI

🡅 🡇 ⇈ ⮫ 🗕 🗗 🗖

public final API browserAPI

This is an instance field, and after the AST's have been loaded from the '.jar' file, this field will contain the Abstract Syntax Tree for Google's "Browser API" suite of methods, types and events.

Remember that all of the public-facing methods & fields in the AST nodes are declared 'final'. Any lists or sets present in these nodes have been built with classes from Java-HTML's "Read Only" Package. It is impossible to break, ruin or screw-up these trees. They, and their contents, are perfectly immutable!

See Also:

deserializeFromJAR()

Code:

Exact Field Declaration Expression:

 public final API browserAPI;

jsAPI

🡅 🡇 ⇈ ⮫ 🗕 🗗 🗖

public final API jsAPI

This is an instance field, and after the AST's have been loaded from the '.jar' file, this field will contain the Abstract Syntax Tree for Google's "JavaScript API" suite of methods, types and events.

Remember that all of the public-facing methods & fields in the AST nodes are declared 'final'. Any lists or sets present in these nodes have been built with classes from Java-HTML's "Read Only" Package. It is impossible to break, ruin or screw-up these trees. They, and their contents, are perfectly immutable!

See Also:

deserializeFromJAR()

Code:

Exact Field Declaration Expression:

 public final API jsAPI;

browserDat

🡅 🡇 ⇈ ⮫ 🗕 🗗 🗖

public final InfoData browserDat

This is some rather boring "facts" about the classes and methods in the AST ("the tree"). This data-field and group of Read-Only "sets" and "lists" exists solely to make the actual code written for the (proprietary, and non-visible) Java-HTML Browser Package Code Generator look a little nicer and a little bit easier to read.

You may review these lists; they aren't that interesting. The contents of the InfoData are all declared 'final' and typed using "Read Only" data-types. They are perfectly immutable, and you cannot "screw them up" or anything like that. 😀😀

Code:

Exact Field Declaration Expression:

 public final InfoData browserDat;

jsDat

🡅 🡇 ⇈ ⮫ 🗕 🗗 🗖

public final InfoData jsDat

This is some rather boring "facts" about the classes and methods in the AST ("the tree"). This data-field and group of Read-Only "sets" and "lists" exists solely to make the actual code written for the (proprietary, and non-visible) Java-HTML Browser Package Code Generator look a little nicer and a little bit easier to read.

You may review these lists; they aren't that interesting. The contents of the InfoData are all declared 'final' and typed using "Read Only" data-types. They are perfectly immutable, and you cannot "screw them up" or anything like that. 😀😀

Code:

Exact Field Declaration Expression:

 public final InfoData jsDat;

Method Detail

deserializeFromJAR

🡅 ⇈ ⮫ 🗕 🗗 🗖

public static SERIALIZED_AST deserializeFromJAR()

Reads both API's (the "Browser API" and the "JavaScript API") from disk, and into Java Memory. The 'API' class is the root node of an Abstract Syntax Treee, or AST. It is just the "Java-ized" variant of the Protocol-API which Google has specified using the two '.json' files:

• browser_protocol.json
• js_protocol.json

Returns:

An instance of this class, with all four data-fields properly initialized.

See Also:

LFEC.readObjectFromFile_JAR(Class, String, boolean, Class)

Code:

Exact Method Body:

 // readObjectFromFile_JAR
 // (
 //      Class<?> classLoaderClass,
 //      String f,
 //      boolean zip,
 //      Class<T> returnClass
 // )

 return LFEC.readObjectFromFile_JAR(
     SERIALIZED_AST.class,
     "data-files" + File.separator + FILE_NAME_JAR,
     true,
     SERIALIZED_AST.class
 );
